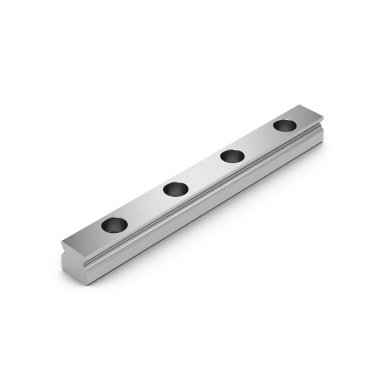

MINIRAIL rail (MN 9-G3-V0) (MN 9-G3-V0)

Item #: MN 9-G3-V0

L5/L10

Number of plugs
(must be ordered separately)

Internal order processing *

Availablity

In Stock

Available 10 Items

Typically ships within 25 days

	Material number	555 001 961
	Type (MINIRAIL)	MN
	Rail build form	9
	Accuracy class	G3
	Preload class	V0

B1	Rail width	9
J1	Rail height in mm	5.5
L3	Rail length in mm	1000
	Diameter rail bore	3.5
g2	Step drilling height	2
	Countersink diameter of rail	6
L4	spacing of fixing holes	20
L5	position of first fixing hole	7.5
L10	position of last fixing hole	7.5
	Weight Rail (g/m)	309

MINIRAIL rail (MN 9-G3-V0) (MN 9-G3-V0)
