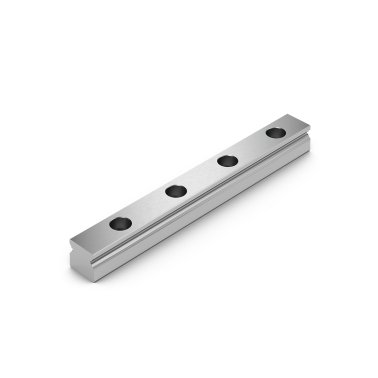

MINIRAIL rail (MN 7-G3-V0) (MN 7-G3-V0)

Item #: MN 7-G3-V0

L5/L10

Number of plugs
(must be ordered separately)

Internal order processing *

Availablity

In Stock

Available 4 Items

Typically ships within 25 days

	Material number	555 001 951
	Type (MINIRAIL)	MN
	Rail build form	7
	Accuracy class	G3
	Preload class	V0

B1	Rail width	7
J1	Rail height in mm	4.5
L3	Rail length in mm	1005
	Diameter rail bore	2.4
g2	Step drilling height	2.2
	Countersink diameter of rail	4.2
L4	spacing of fixing holes	15
L5	position of first fixing hole	5
L10	position of last fixing hole	5
	Weight Rail (g/m)	216
