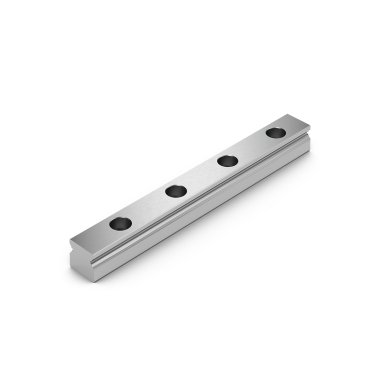

MINIRAIL rail (MN 7-G1-V1)

B1	Rail width	7
J1	Rail height in mm	4.5
L3	Rail length in mm	1005
	Diameter rail bore	2.4
g2	Step drilling height	2.2
	Countersink diameter of rail	4.2
L4	spacing of fixing holes	15
L5	position of first fixing hole	5
L10	position of last fixing hole	5
	Weight Rail (g/m)	216

B1

Rail width

7

J1

Rail height in mm

4.5

L3

Rail length in mm

1005

Diameter rail bore

2.4

g2

Step drilling height

2.2

Countersink diameter of rail

4.2

L4

spacing of fixing holes

15

L5

position of first fixing hole

5

L10

position of last fixing hole

5

Weight Rail (g/m)

216

MINIRAIL rail (MN 7-G1-V1) (MN 7-G1-V1)
