MINIRAIL
/
MINIRAIL rail
/

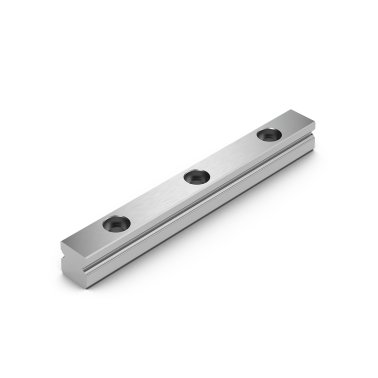

MINIRAIL rail (MN 5-G1-V1)
MINIRAIL rail (MN 5-G1-V1)
(
MN 5-G1-V1
)
Item #:
MN 5-G1-V1
L5/L10
Number of plugs
(must be ordered separately)
Internal order processing
*
Standard
Availablity
Out of Stock
The product is not in stock. Please contact us for info.
Show price
Material number
555 001 994
Type (MINIRAIL)
MN
Rail build form
5
Accuracy class
G1
Preload class
V1
B1
Rail width
5
J1
Rail height in mm
3.5
L3
Rail length in mm
505
Diameter rail bore
2.4
g2
Step drilling height
2.5
Countersink diameter of rail
3.5
L4
spacing of fixing holes
15
L5
position of first fixing hole
5
L10
position of last fixing hole
5
Weight Rail (g/m)
120
