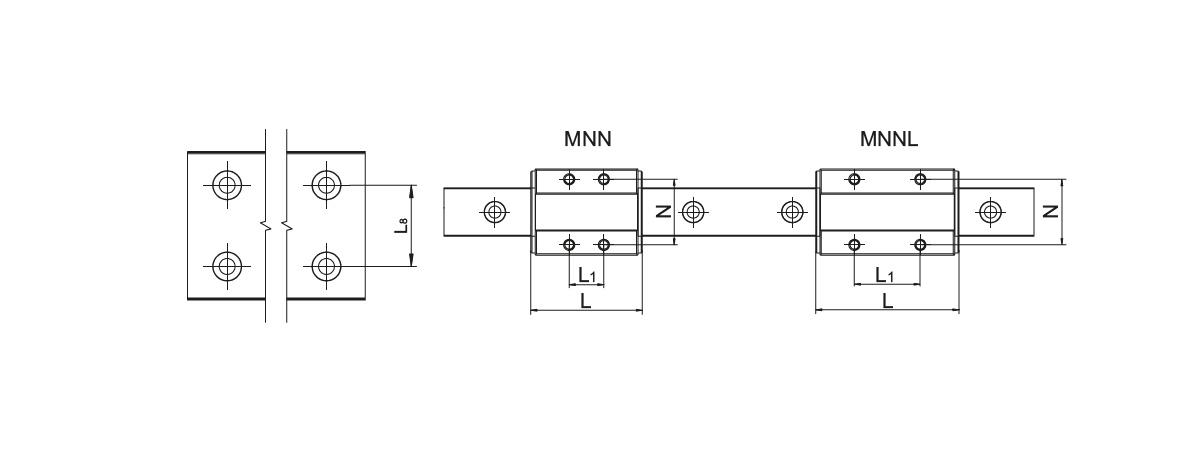

MINIRAIL rail (MN 42-G1-V1)

B1	Rail width	42
J1	Rail height in mm	9.5
L3	Rail length in mm	990
	Diameter rail bore	4.5
g2	Step drilling height	5
	Countersink diameter of rail	8
L4	spacing of fixing holes	40
L5	position of first fixing hole	15
L10	position of last fixing hole	15
	Weight Rail (g/m)	2828

B1

Rail width

42

J1

Rail height in mm

9.5

L3

Rail length in mm

990

Diameter rail bore

4.5

g2

Step drilling height

5

Countersink diameter of rail

8

L4

spacing of fixing holes

40

L5

position of first fixing hole

15

L10

position of last fixing hole

15

Weight Rail (g/m)

2828

MINIRAIL rail (MN 42-G1-V1) (MN 42-G1-V1)
