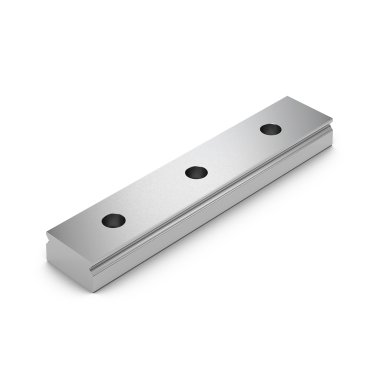

MINIRAIL rail (MN 24-G3-V0)

B1	Rail width	24
J1	Rail height in mm	8.5
L3	Rail length in mm	995
	Diameter rail bore	4.5
g2	Step drilling height	4
	Countersink diameter of rail	8
L4	spacing of fixing holes	40
L5	position of first fixing hole	15
L10	position of last fixing hole	15
	Weight Rail (g/m)	1476

B1

Rail width

24

J1

Rail height in mm

8.5

L3

Rail length in mm

995

Diameter rail bore

4.5

g2

Step drilling height

4

Countersink diameter of rail

8

L4

spacing of fixing holes

40

L5

position of first fixing hole

15

L10

position of last fixing hole

15

Weight Rail (g/m)

1476

MINIRAIL rail (MN 24-G3-V0) (MN 24-G3-V0)
