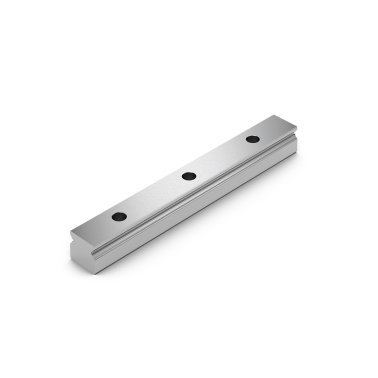

MINIRAIL rail (MN 15-G1-V1) (MN 15-G1-V1)

Item #: MN 15-G1-V1

L5/L10

Number of plugs
(must be ordered separately)

Internal order processing *

Availablity

In Stock

Available 5 Items

Typically ships within 25 days

	Material number	555 001 980
	Type (MINIRAIL)	MN
	Rail build form	15
	Accuracy class	G1
	Preload class	V1

B1	Rail width	15
J1	Rail height in mm	9.5
L3	Rail length in mm	995
	Diameter rail bore	3.5
g2	Step drilling height	5
	Countersink diameter of rail	6
L4	spacing of fixing holes	30
L5	position of first fixing hole	15
L10	position of last fixing hole	15
	Weight Rail (g/m)	996
