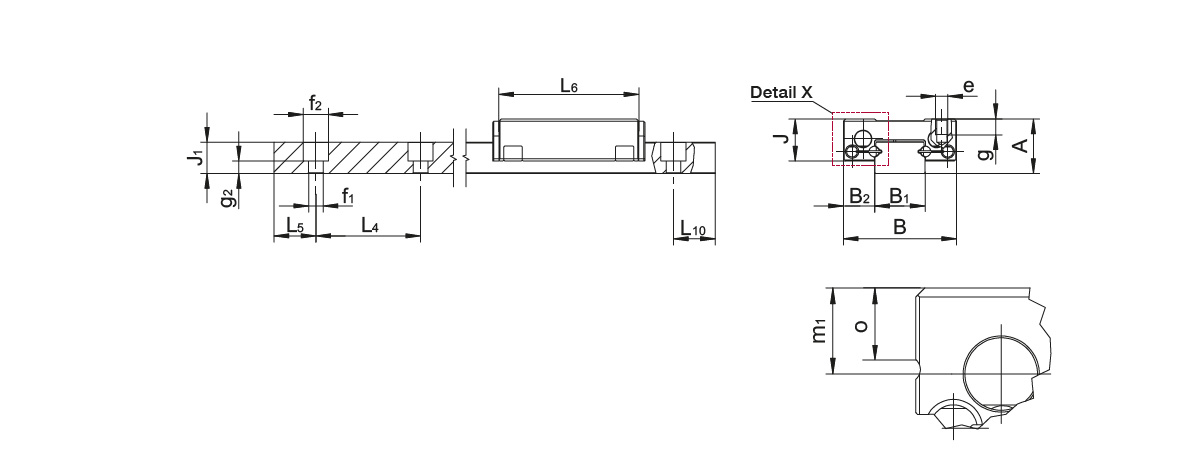

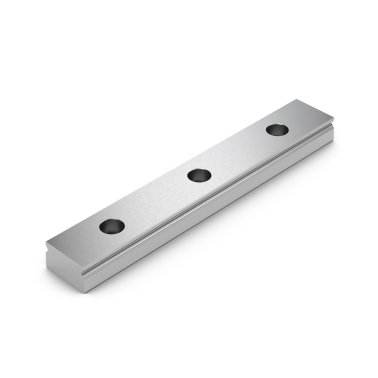

MINIRAIL rail (MN 14-G1-V1)

B1	Rail width	14
J1	Rail height in mm	5.2
L3	Rail length in mm	985
	Diameter rail bore	3.5
g2	Step drilling height	2
	Countersink diameter of rail	6
L4	spacing of fixing holes	30
L5	position of first fixing hole	10
L10	position of last fixing hole	10
	Weight Rail (g/m)	518

B1

Rail width

14

J1

Rail height in mm

5.2

L3

Rail length in mm

985

Diameter rail bore

3.5

g2

Step drilling height

2

Countersink diameter of rail

6

L4

spacing of fixing holes

30

L5

position of first fixing hole

10

L10

position of last fixing hole

10

Weight Rail (g/m)

518

MINIRAIL rail (MN 14-G1-V1) (MN 14-G1-V1)
