MINIRAIL carriage

A	System height in mm	16
B	System width in mm	32
B2	Distance between locating faces	8.5
L	Carriage length	73.7
L1	Exterior fixing hole spacing	40
L2	Interior fixing hole spacing	20
L6	Steel body length	70.7
N	Lateral fixing hole spacing	25
O	Reference face height	4.9

A

System height in mm

16

B

System width in mm

32

B2

Distance between locating faces

8.5

L

Carriage length

73.7

L1

Exterior fixing hole spacing

40

L2

Interior fixing hole spacing

20

L6

Steel body length

70.7

N

Lateral fixing hole spacing

25

O

Reference face height

4.9

C0	Static load capacitiy (N)	11,855
M0Q	Static cross moment capacity (Nm)	90.1
M0L	Static longitud. moment capacity (Nm	118.6
MQ	Dyn. cross moment capacity (Nm)	47.1
ML	Dyn. longitud. moment capacity (Nm)	62
	Weight Rail (g)	146

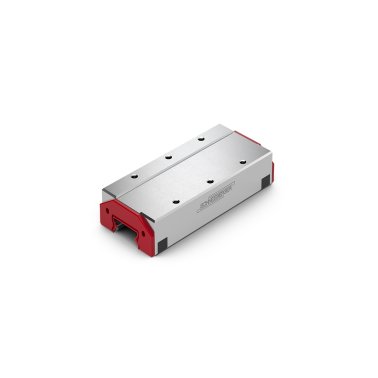

MINIRAIL carriage (MNNXL 15-G3)
