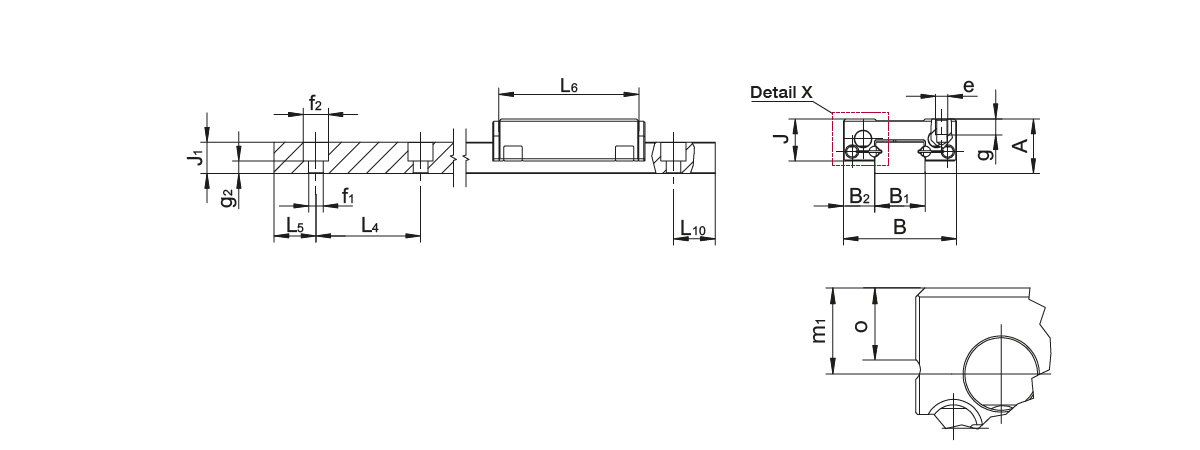

MINIRAIL carriage

A	System height in mm	13
B	System width in mm	27
B2	Distance between locating faces	7.5
L	Carriage length	46.4
L1	Exterior fixing hole spacing	20
L6	Steel body length	43.4
N	Lateral fixing hole spacing	20
O	Reference face height	3.9

A

System height in mm

13

B

System width in mm

27

B2

Distance between locating faces

7.5

L

Carriage length

46.4

L1

Exterior fixing hole spacing

20

L6

Steel body length

43.4

N

Lateral fixing hole spacing

20

O

Reference face height

3.9

C0	Static load capacitiy (N)	5,630
M0Q	Static cross moment capacity (Nm)	34.4
M0L	Static longitud. moment capacity (Nm	32.9
MQ	Dyn. cross moment capacity (Nm)	19.8
ML	Dyn. longitud. moment capacity (Nm)	18.9
	Weight Rail (g)	63

MINIRAIL carriage (MNNL 12-G1)
