MINIRAIL carriage

A	System height in mm	13
B	System width in mm	27
B2	Distance between locating faces	7.5
L	Carriage length	36.4
L1	Exterior fixing hole spacing	15
L6	Steel body length	33.4
N	Lateral fixing hole spacing	20
O	Reference face height	3.9

A

System height in mm

13

B

System width in mm

27

B2

Distance between locating faces

7.5

L

Carriage length

36.4

L1

Exterior fixing hole spacing

15

L6

Steel body length

33.4

N

Lateral fixing hole spacing

20

O

Reference face height

3.9

C0	Static load capacitiy (N)	3,900
M0Q	Static cross moment capacity (Nm)	23.8
M0L	Static longitud. moment capacity (Nm	16.3
MQ	Dyn. cross moment capacity (Nm)	15.3
ML	Dyn. longitud. moment capacity (Nm)	10.4
	Weight Rail (g)	47

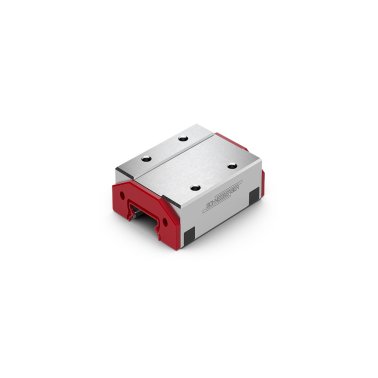

MINIRAIL carriage (MNN 12-G1)
