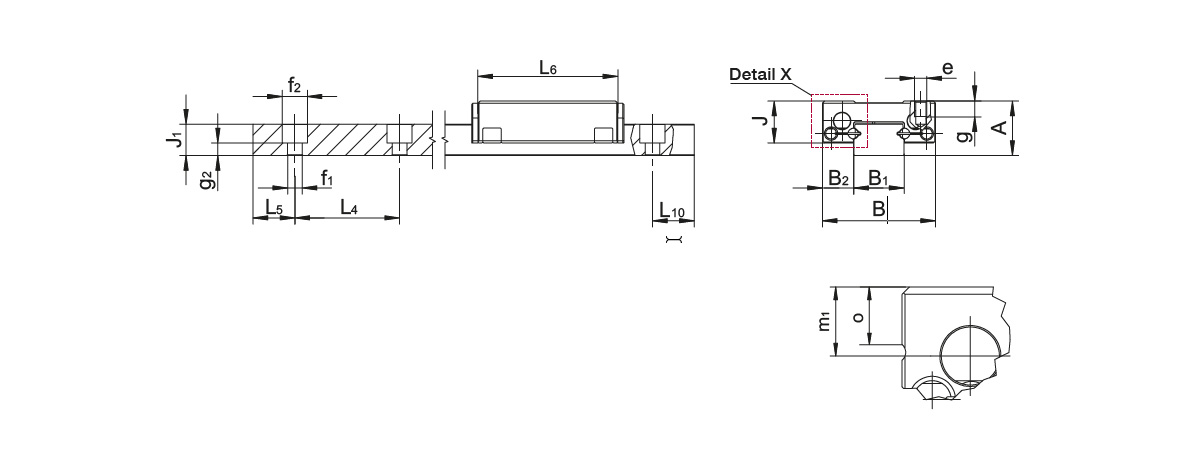

MINIRAIL carriage

A	System height in mm	10
B	System width in mm	20
B2	Distance between locating faces	5.5
L	Carriage length	32
L1	Exterior fixing hole spacing	10
L6	Steel body length	29
N	Lateral fixing hole spacing	15
O	Reference face height	3.1

A

System height in mm

10

B

System width in mm

20

B2

Distance between locating faces

5.5

L

Carriage length

32

L1

Exterior fixing hole spacing

10

L6

Steel body length

29

N

Lateral fixing hole spacing

15

O

Reference face height

3.1

C0	Static load capacitiy (N)	2,770
M0Q	Static cross moment capacity (Nm)	12.9
M0L	Static longitud. moment capacity (Nm	10.2
MQ	Dyn. cross moment capacity (Nm)	7.9
ML	Dyn. longitud. moment capacity (Nm)	6.2
	Weight Rail (g)	24

MINIRAIL carriage (MNN 9-G1)
