MINIRAIL carriage

A	System height in mm	16
B	System width in mm	60
B2	Distance between locating faces	9
L	Carriage length	55.7
L1	Exterior fixing hole spacing	20
L6	Steel body length	52.7
N	Lateral fixing hole spacing	45
O	Reference face height	4.9

A

System height in mm

16

B

System width in mm

60

B2

Distance between locating faces

9

L

Carriage length

55.7

L1

Exterior fixing hole spacing

20

L6

Steel body length

52.7

N

Lateral fixing hole spacing

45

O

Reference face height

4.9

C0	Static load capacitiy (N)	8,110
M0Q	Static cross moment capacity (Nm)	171.2
M0L	Static longitud. moment capacity (Nm	56.8
MQ	Dyn. cross moment capacity (Nm)	100.3
ML	Dyn. longitud. moment capacity (Nm)	33.3
	Weight Rail (g)	169

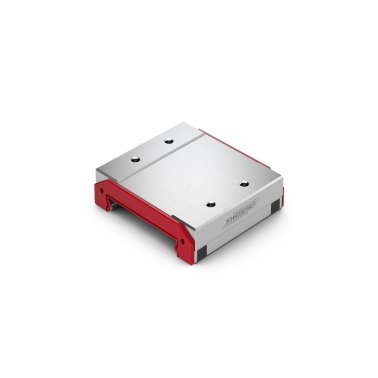

MINIRAIL carriage (MNN 42-G3)
