Typ
|
ZST
|
|
|
Buildsize
|
4
|
|
|
Material number
|
575 501 951
|
|
|
Material title
|

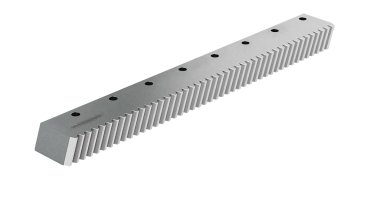

ZST M4-39 X 39 X 2000-S-I-6-D
|
|
|
Gearing
|
S (inclined to the right)
|
|
|
Hardness
|
I
|
|
|
Accuracy
|
Q6
|
|
|
Holes
|
D (with pin and fixing holes)
|
|
|
Material
|
C45
|
|
m
|
Module
|
4
|
|
ps
|
Face pitch (mm)
|
13.33
|
|
L1
|
Length (mm)
|
2000
|
|
|
L2
|
13.8
|
|
z
|
Number of teeth
|
150
|
|
b
|
Width (mm)
|
39
|
|
hk
|
Head height (mm)
|
39
|
|
ho
|
Height of line of action (mm)
|
35
|
|
f
|
Chamfer (mm)
|
3
|
|
a
|
Starting hole spacing (mm)
|
62.5
|
|
l
|
Hole pitch (mm)
|
125
|
|
n
|
Number of holes
|
16
|
|
h
|
Height of hole (mm)
|
12
|
|
d1
|
Diameter of through-hole (mm)
|
10
|
|
d2
|
Countersink diameter (mm)
|
15
|
|
t
|
Countersind depth (mm)
|
9
|
|
a1
|
Distance of pinhole from star (mm)
|
33.3
|
|
l1
|
Distance between pinholes
|
1,933.4
|
|
d3
|
|
7.7
|
|
|
Weight(kg)
|
21.4
|
