Products
/
Frictionless tables
/

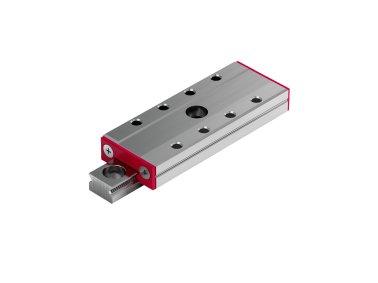

Micro frictionless table Minislide MSQ (MSQ 9-50.42)
Micro frictionless table Minislide MSQ (MSQ 9-50.42)
(
571 010 107
)
Item #:
571 010 107
Internal order processing
*
Standard
Availablity
Out of Stock
The product is not in stock. Please contact us for info.
Show price
Material number
571 010 107
Material title
MSQ 9-50.42
Material
rostbeständiger, durchgehärteter Stahl

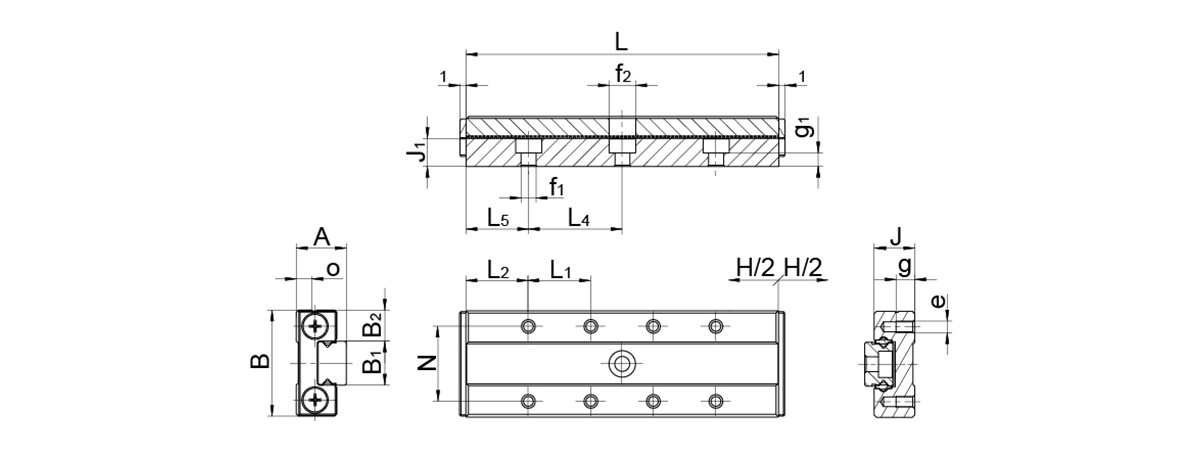

Buildsize
9
A
System height
10
B
System width
20
B1
Rail width
9
B2
Distance between locating surfaces
5.5
J
Carriage height
8
J1
Rail height
5.5
H
Stroke
42
L
System length
50
L1
Attachment hole spacing
10
L2
Attachment hole start/end spacing
10
L4
Attachment hole spacing
20
L5
Attachment hole start/end spacing
5
N
Lateral attachment hole spacing
15
e
Thread
M3
f1
Attachment hole diameter
3.5
f2
Screw hole diameter
6
g
Usable thread length
3
g1
Clamping length
2
C0
Static load capacity
1,909
C
Dynamic load capacity (≙ C100)
846
M0Q
Permissible lateral static torque
10.1
M0L
Permissible static torque lengthwise
10.8
MQ
Permissible lateral dynamic torque
4.5
Permissible dynamic torque lengthwise
4.8
Weight(g)
56.9
