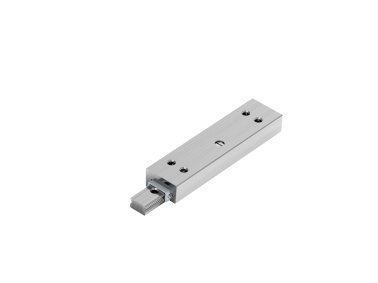

Micro frictionless table Minislide MS (MS 5-40.31)

	Material number	571 010 007
	Material title	MS 5-40.31
	Material	rostbeständiger, durchgehärteter Stahl
	Buildsize	5
A	System height	6
B	System width	10
B1	Rail width	5
B2	Distance between locating surfaces	2.5
J	Carriage height	5.5
J1	Rail height	3
H	Stroke	31
L	System length	40

Material number

571 010 007

Material title

MS 5-40.31

Material

rostbeständiger, durchgehärteter Stahl

Buildsize

5

A

System height

6

B

System width

10

B1

Rail width

5

B2

Distance between locating surfaces

2.5

J

Carriage height

5.5

J1

Rail height

3

H

Stroke

31

L

System length

40

L1	Attachment hole spacing	28
L2	Attachment hole start/end spacing	6
e	Thread	M2
g	Usable thread length	2.35

C0	Static load capacity	1,716
C	Dynamic load capacity (≙ C100)	987
M0Q	Permissible lateral static torque	4.8
M0L	Permissible static torque lengthwise	7.55
MQ	Permissible lateral dynamic torque	2.76
	Permissible dynamic torque lengthwise	4.34
	Weight(g)	14.8

Micro frictionless table Minislide MS (MS 5-40.31) (571 010 007)
