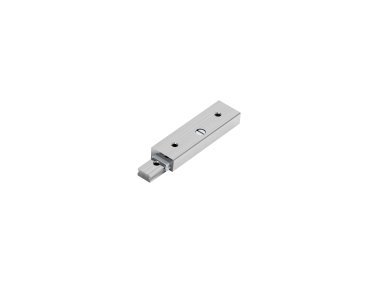

Micro frictionless table Minislide MS (MS 4-25.22)

	Material number	571 010 003
	Material title	MS 4-25.22
	Material	rostbeständiger, durchgehärteter Stahl
	Buildsize	4
A	System height	4
B	System width	7
B1	Rail width	4
B2	Distance between locating surfaces	1.5
J	Carriage height	3.7
J1	Rail height	2.1
H	Stroke	22
L	System length	25

Material number

571 010 003

Material title

MS 4-25.22

Material

rostbeständiger, durchgehärteter Stahl

Buildsize

4

A

System height

4

B

System width

7

B1

Rail width

4

B2

Distance between locating surfaces

1.5

J

Carriage height

3.7

J1

Rail height

2.1

H

Stroke

22

L

System length

25

L1	Attachment hole spacing	16
L2	Attachment hole start/end spacing	4.5
e	Thread	M1.6
g	Usable thread length	1.5

C0	Static load capacity	555
C	Dynamic load capacity (≙ C100)	337
M0Q	Permissible lateral static torque	1.19
M0L	Permissible static torque lengthwise	1.46
MQ	Permissible lateral dynamic torque	0.72
	Permissible dynamic torque lengthwise	0.88
	Weight(g)	4.3

Micro frictionless table Minislide MS (MS 4-25.22) (571 010 003)
