Products
/
Frictionless tables
/

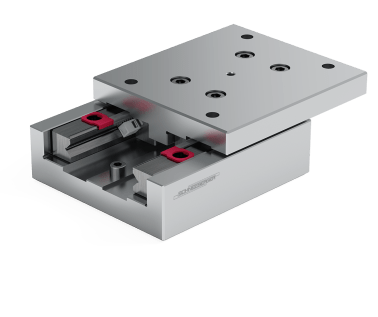

Frictionless table NKL (NKL 3-80)
Frictionless table NKL (NKL 3-80)
(
570 890 001
)
Item #:
570 890 001
Availablity
Out of Stock
The product is not in stock. Please contact us for info.
Show price
Material number
570 890 001
Material title
NKL 3-80
Material
Aluminium
Buildsize
3
A
System height
25
B
System width
60
Dw
Rolling element diameter
3
H
Stroke
45
L
System length
80
L2
Distance to bottom mounting row
25
*L6
Attachment hole start/end spacing (top)
27.5
L7
Attachment hole start/end spacing (down)
10
b2
Distance mounting hole bottom transverse
40
b3
Distance mounting hole front side
25
d
Diameter countersink hole
7.5
d1
Diameter bore
4.5
d2
Thread
M4
h
Height flange
8.2
h1
Depth bore hole
3.2
Dimension t
8.5
C/C100 in N
1,300
Weight(kg)
0.42
