Products
/
Frictionless tables
/

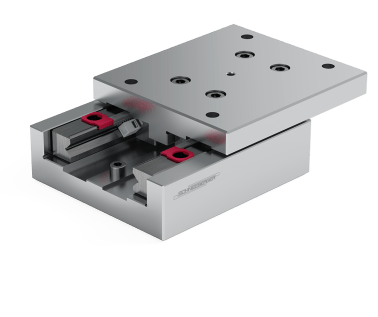

Frictionless table NKL (NKL 2-80)
Frictionless table NKL (NKL 2-80)
(
570 800 650
)
Item #:
570 800 650
Internal order processing
*
Standard
Availablity
Out of Stock
The product is not in stock. Please contact us for info.
Show price
Material number
570 800 650
Material title
NKL 2-80
Material
Aluminium
Buildsize
2
A
System height
21
B
System width
40
Dw
Rolling element diameter
2
H
Stroke
50
L
System length
80
L2
Distance to bottom mounting row
15
*L6
Attachment hole start/end spacing (top)
17.5
L7
Attachment hole start/end spacing (down)
5
b2
Distance mounting hole bottom transverse
30
b3
Distance mounting hole front side
15
d
Diameter countersink hole
6
d1
Diameter bore
3.5
d2
Thread
M3
h
Height flange
6.7
h1
Depth bore hole
3.2
Dimension t
8
C/C100 in N
1,020
Weight(kg)
0.23
